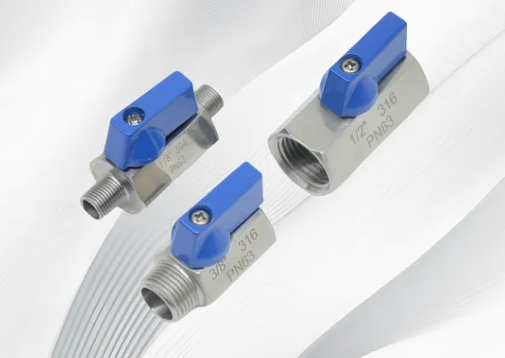

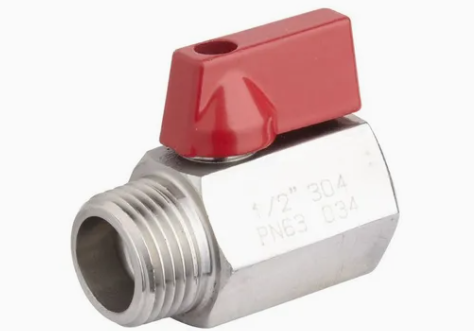

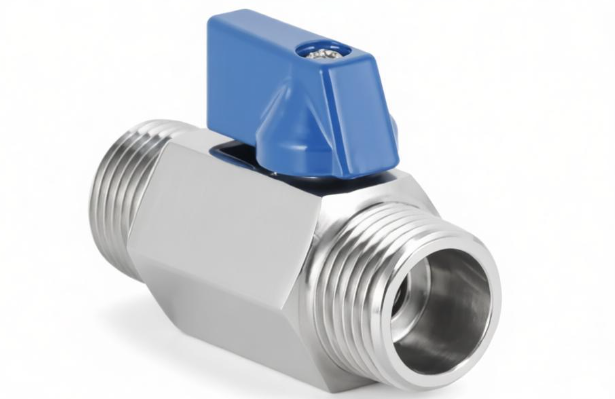

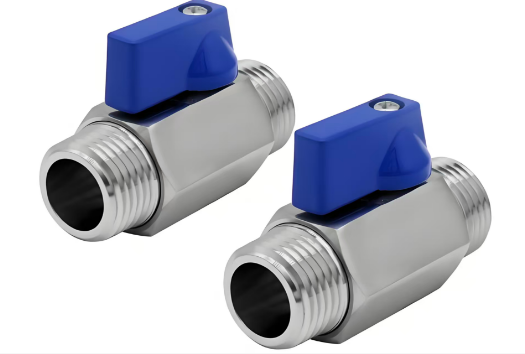

A mini ball valve is a compact, quarter-turn (90-degree rotation) valve used to control the flow of liquids or gases. It uses a rotating ball with a bore (hole) through its center to either allow flow (when aligned with the pipe) or stop flow (when perpendicular to the pipe).
The defining characteristic is its small size and reduced port (the internal diameter is smaller than the pipe's outer diameter, but it's now common in industrial sizes). This makes them ideal for applications where space is tight and low flow is acceptable.
Mini ball valve can be used under 25 kg pressure, can be widely used in purification equipment cooling equipment and other through the medium is gas or water or diesel under a variety of machines and equipment, application scenarios.
|
Feature |
Mini Ball Valve |
Standard Ball Valve |
|
Size Range |
1/8" to 1" (6mm - 25mm) |
1/4" to 12"+ |
|
Body Design |
Simple, compact, often one-piece or two-piece |
Often two-piece or three-piece for servicing |
|
Flow Capacity |
Typically reduced port or full port (small) |
Usually full port, higher Cv |
|
Actuation |
Usually manual lever handle |
Manual (lever/gear) or automated (electric/pneumatic) |
|
Pressure/Temp |
Moderate (200-600 PSI / 200°F typical) |
Higher (up to 3000+ PSI / 400°F+) |
|
Cost |
Low cost per unit |
More expensive |
|
Servicing |
Not usually repairable (replacement) |
Often repairable (replace seats/seals) |
|
Primary Use |
Point-of-use shut-off, space-constrained applications |
Main line isolation, heavy industrial use |
