welded mesh

Specification List of Welded Wire Mesh

Opening

Wire diameter

Width

1/4" x 1/4"

0.5mm-0.7mm

300mm-1828mm

3/4" x 3/4"

0.7mm-2.0mm

300mm-1828mm

3/8" x 3/8"

0.7mm-1.1mm

300mm-1828mm

5/8" x 5/8"

0.8mm-1.2mm

300mm-1828mm

1/2" x 1/2"

0.45mm-1.6 mm

300mm-1828mm

1" x 1"

0.7mm-3.0mm

300mm-2000mm

1" x 1/2"

0.8mm-1.6mm

300mm-1828mm

1-1/2" x 1-1/2"

0.7mm-3.5mm

300mm-1828mm

1" x 2"

1.6mm-2.1mm

300mm-1828mm

2" x 2"

0.7mm-4.0mm

300mm-2500mm

2" x 3"

1.5mm-3.5mm

300mm-2000mm

2" x 4"

2.0mm-4.0mm

300mm-1828mm

3" x 3"

1.0mm-4.5mm

300mm-2500mm

3" x 4"

1.5mm-4.5mm

300mm-2000mm

4" x 4"

1.0mm-4.5mm

300mm-2500mm

5" x 5"

2.5mm-4.5mm

300mm-2500mm

6" x 6"

2.5mm-4.5mm

300mm-2500mm

Technical Note:
1,Standard roll length:15.24m,30m,50m
2,Special sizes available at request

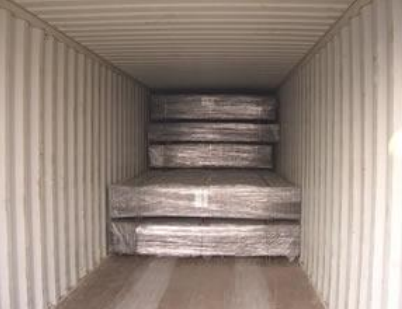

3,Packing: in waterproof paper in rolls. Custom packing available at request.

Specification List of Welded Wire Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
