Conical Strainers
Share to:

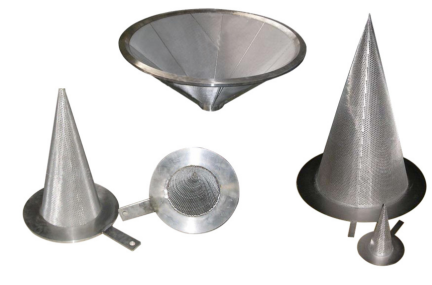

Conical Strainers

Availability:
Inquire

  • Pipeline Strainers
  • 45
  • 2026-06-04

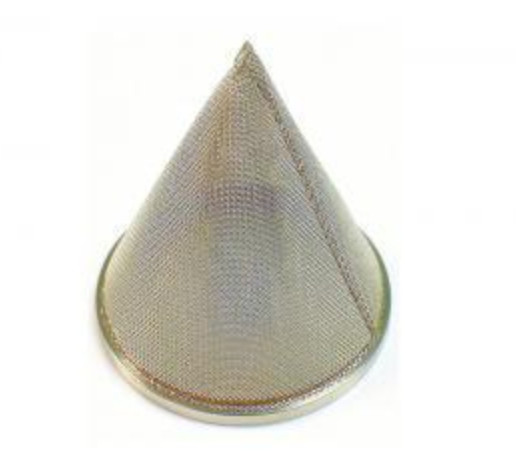

Material:Stainless steel woven wire
woven:Plain Dutch Weave, Twilled Dutch Weave
Application:Separate solids from liquids

Temporary Strainers provide effective and economical protection of pumps, valves, meters and other costly equipment. Temporary Strainers are used during piping system commissioning and startup to remove debris left in the line during construction. • Temporary Strainers should not be used in place of permanent strainers. Remove Temporary Strainers from pipelines after commissioning.


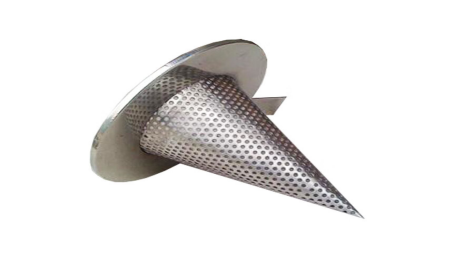

Standard Construction
11 Ga. / 1/8" Tk. Flange Ring - to fit ASME B16.5 Class 150 to Class 2500 (specify)
304 Stainless Steel Materials of Construction •
Conical Screen - 1/8" Perforations on 3/16" Centers distance
Optional Construction
Heavy Gauge Flange Rings, Special Machining, RTJ Male or RTJ Female, DIN Patterns, etc.
Carbon steel, 316 SS and other alloys available on request.
Many other Screening Options available.
Specify Perforation Sizes/Patterns on request.
Mesh Lined for Fine Straining – Specify Mesh Size and Inside or Outside.
Inverted Conicals (Cone-in-Cone) for High Open Area Ratios.
Reinforced construction for high flows/differential pressure.

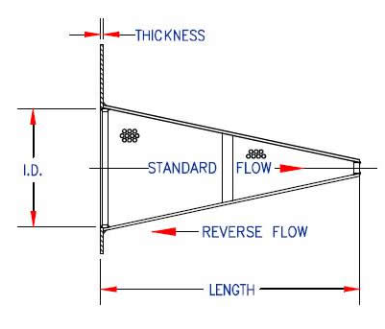

CONICAL STRAINER DIMENSIONS( inches, mm)

SIZE

A

B

C

150/300#

600#

900#

1500#

100%

150%

200%

300%

3/4
(20)

2-1/8
(54)

2-1/2
(64)

2-5/8
(67)

2-5/8
(67)

5/8
(16)

1-1/8
(29)

1-2/3
(43)

2-1/4
(57)

3-3/8
(86)

1
(25)

2-1/2
(64)

2-3/4
(70)

3
(76)

3
(76)

3/4
(19)

1-5/8
(41)

2-1/2
(64)

3-1/3
(84)

5
(127)

1-1/2
(40)

3-1/4
(83)

3-5/8
(92)

3-3/4
(95)

3-3/4
(95)

1-1/4
(32)

2-1/5
(56)

3-3/8
(86)

4-1/2
(114)

6-3/4
(171)

2
(50)

4
(102)

4-1/4
(108)

5-1/2
(140)

5-1/2
(140)

1-3/4
(44)

3
(76)

4-1/2
(114)

6
(152)

9-1/8
(232)

1-1/2
(65)

4-3/4
(121)

5
(127)

6-3/8
(162)

6-3/8
(162)

2-1/4
(57)

3-1/5
(81)

5
(127)

6-2/3
(170)

10-1/8
(257)

3
(80)

5-1/4
(133)

5-3/4
(146)

6-1/2
(165)

6-3/4
(171)

2-3/4
(70)

4
(102)

6-1/4
(159)

8-1/2
(216)

12-3/4
(324)

4
(100)

6-3/4
(171)

7-1/2
(191)

8
(203)

8-1/8
(206)

3-3/4
(95)

5-1/8
(130)

7-7/8
(200)

10-5/8
(270)

17
(432)

5
(125)

7-5/8
(194)

9-3/8
(238)

9-5/8
(244)

9-7/8
(251)

4-5/8
(117)

6-1/2
(165)

10-1/8
(257)

14
(356)

21
(533)

6
(150)

8-5/8
(219)

10-3/8
(263)

11-1/4
(286)

11
(279)

5-3/8
(137)

8-1/8
(207)

13
(330)

17
(432)

26
(660)

8
(200)

10-7/8
(276)

12-1/2
(318)

14
(356)

13-3/4
(349)

7-3/8
(187)

10-1/5
(259)

16
(406)

22
(559)

33
(838)

10
(250)

13-1/4
(337)

15-5/8
(397)

17
(432)

17
(432)

9-3/8
(238)

13
(330)

20
(508)

27
(686)

40
(1016)

12
(300)

16
(406)

17-7/8
(454)

19-1/2
(495)

20-3/8
(517)

11
(279)

16
(406)

24
(610)

33
(838)

49
(1245)

14
(350)

17-3/8
(441)

19
(483)

20-3/8
(517)

22-5/8
(575)

12-1/4
(311)

17
(432)

27
(686)

36
(914)

54
(1372)

16
(400)

20-1/8
(511)

21-7/8
(555)

22-1/2
(572)

25-1/8
(638)

14
(356)

20
(508)

31
(787)

41
(1041)

62
(1575)

18
(450)

21-1/4
(540)

23-3/4
(603)

25
(635)

27-5/8
(702)

15-3/4
(400)

23
(584)

35
(889)

47
(1194)

71
(1083)

20
(500)

23-1/2
(597)

26-5/8
(676)

27-3/8
(695)

29-5/8
(753)

17-1/2
(445)

25
(635)

39
(991)

53
(1346)

79
(2007)

24
(600)

27-7/8
(708)

30-7/8
(784)

32-7/8
(835)

35-3/8
(899)

21-1/4
(540)

30
(762)

47
(1194)

63
(1600)

95
(2413)
