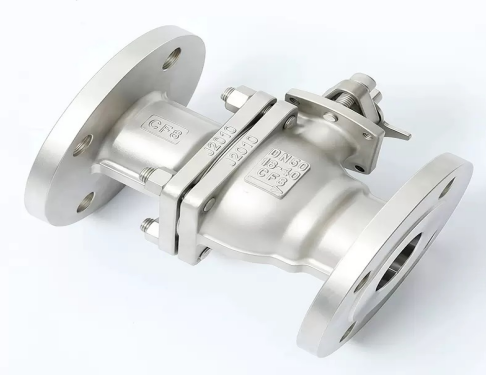

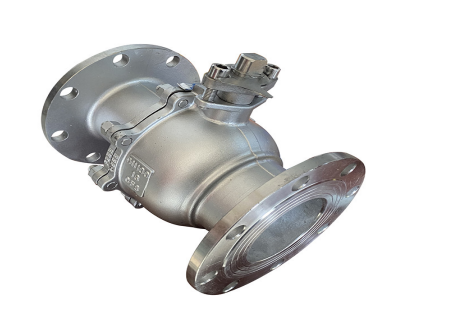

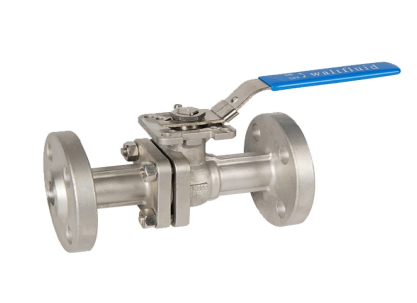

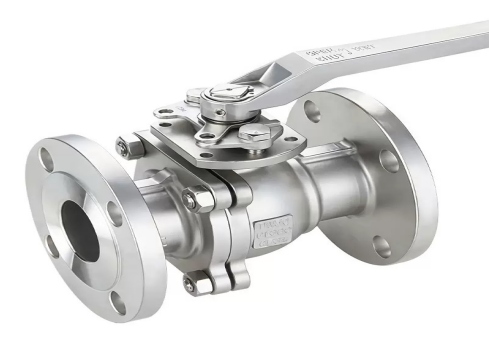

2pc flange ball valve

2PC Flanged Ball Valve is widely used in industrial applications and have several key advantages.

Firstly, both valves feature a flanged connection. This design ensures a secure and tight seal, minimizing the risk of leakage and enhancing their overall performance. The flanged connection also simplifies installation and maintenance, making it easier to connect and disconnect the valve from the pipeline.

Secondly, both valves offer excellent flow control capabilities. The ball valve has a spherical ball-shaped disc that provides unrestricted flow when open and a tight shut-off when closed. This allows for precise control of fluid flow rates and minimizes pressure drops. On the other hand, the 2PC Flanged Ball Valve has a gate or wedge-shaped disc that slides across the valve seat, providing a full bore flow path when fully open. This design offers low resistance to flow and allows for efficient regulation of fluid flow.

Description

FEATURES:

· Blow-out Proof Stem

· Investment Casting Body

· Pressure Balance Hole in Ball Slot

· Full Port

· Various Flange Standard Available

· Locking Device Available

STAN DARD:

· Design: ASME B16.34

· Wall Thickness: ASME B16.34

· Flange Standard: ASME B16.5,DIN PN16-40

· Inspection&Testing: API 598
