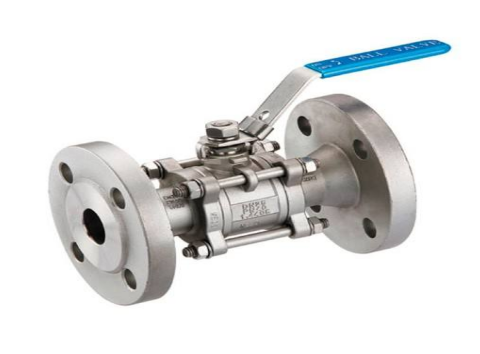

3PC Flange Ball Valve is a type of valve that is commonly used in various industries due to its numerous advantages.
In summary, the 3PC Flange Ball Valve with its sturdy construction, secure flanged connection, excellent flow control, and easy maintenance is a highly advantageous choice for industries requiring reliable and efficient flanged ball valve.
Description
· Blow-out Proof Stem
· Investment Casting Body
· Pressure Balance Hole in Ball Slot
· Full Port
· Various Flange Standard Available
· Locking Device Available
· Design: ASME B16.34
· Wall Thickness: ASME B16.34
· Flange Standard: ASME B16.5,DIN PN16-40
· Inspection&Testing: API 598
|

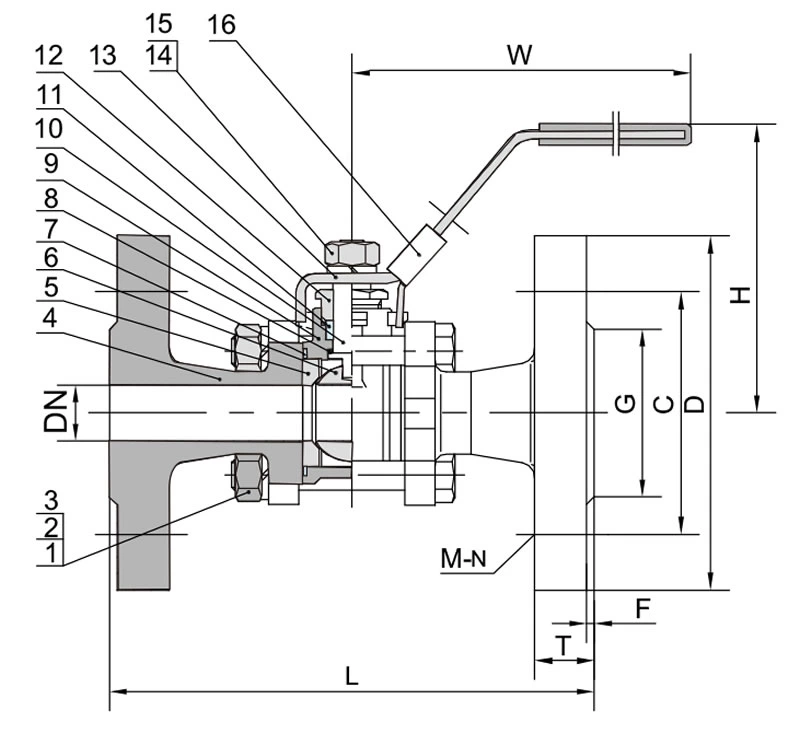

Body |
CF8/CF8M |
|
Seat |
PTFE |
|
Ball |
SS304/SS316 |
|
Stem |
SS304/SS316 |
|
Stem Gasket |
PTFE |
|
Packing |
PTFE |
|
Packing Gland |
SS304 |
|
Handle |
SS304 |
|
Spring Washer |
ASTM A194-8 |
|
Handle Nut |
SS304 |
|
Handle Lock |
SS304 |
|
Nut |
ASTM A194-8 |
|
End Cap |
CF8/CF8M |
|
Gasket |
PTFE |
|
Bolt |
ASTM A194-8 |
|
Handle Washer |
SS304 |
