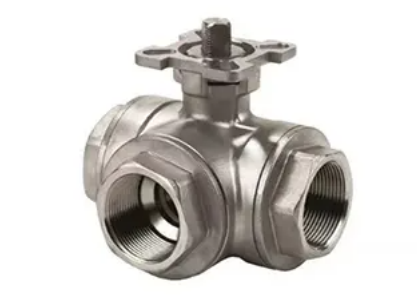

high platform ball valve type tee
Share to:

high platform ball valve type tee

Availability:
Inquire

  • Ball Valve
  • 25
  • 2026-06-04

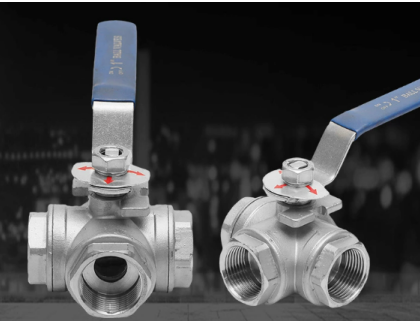

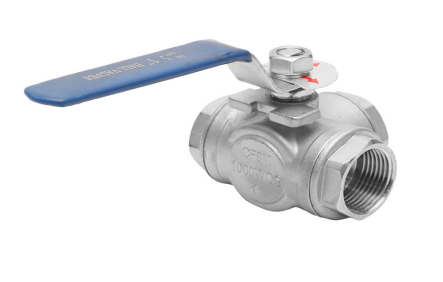

ISO Audited Manufacturer CENTRO 3 Way Threaded Ball Valve has two types: L Port and T Port. L-Port flow ball valves with handles that turn 90 degrees (a quarter-turn of the handle) are also referred to as two-position valves. They are normally used for diverting flow either to the left or right with a 90-degree turn of the handle. While the T Port balls valves, sometimes called 180-degree ball valves, are widely used to connect two inlet flows and combine them to flow out into one common outlet port. Depending on requirements, the reverse is also applicable which is split the flow coming in from one common port into two outgoing flows, each exiting the valve through a different valve port.
Product Description
CENTRO 3 Way Threaded Ball Valve certificated by AD2000/BV marine standard. L-Port flow ball valve with three-position has a 180-degree limit on the turn of the handle. These L-Port design are usually called three-position valves: a starting position, a 90-degree turn, and a 180-degree turn.T-Port flow ball valves are very different from L-Port flow pattern ball valves. Typical T-Port flow ball valves unable to provide shut-off control. They can only either limit flow to two of the three-valve ports or allow flow through all three of the valve ports at the same time. This is the main reason why T-Port flow pattern ball valves are sometimes called as mixing valve. Material available SS316 SS316L SS304 SS304L.


CENTRO 3-Way Threaded Ball Valve Features

• 3-Way Design
• T/L Port Options
• Sizes: 1/2” – 2” (DN615– DN50)
• Working Pressure: PN16-PN64
• Threaded End: BSP, NPT
• Applicable Medium: Oil, Gas,Nitric acid, Acetic acid & Water Applications
• Blow-out Proof Stem Design
• Temperature: -20 Degree C to 180 Degree C


NO

Part Name

Material

1

Body

WCB/CF8/CF8M

2

Valve Cover Gasket

PTFE

3

Bonnet

WCB/CF8/CF8M

4

Ball

WCB/CF8/CF8M

5

Seat

PTFE

6

Stem

SS304/SS316

7

Thrust Washer

PTFE

8

O-Ring

NBR

9

VHPE Packing

PTFE

10

Junk Ring

SS304

11

Belleville Washer

SS304

12

Handle Nut

SS304

13

Nut Lock Cover

SS304

14

Handle Nut

SS304

15

Handle

SS304

16

Handle Lock

SS304

17

Handle Cover

SS304

Main Out Sizes

DN

L

D

H

E

5211

15

71

12

68

145

F03

20

81

15

73

145

F03

25

91

18

75

166

F04

32

120

25

83

166

F04

40

136

32

104

206

F05

50

152

38

110

206

F05
